Project description

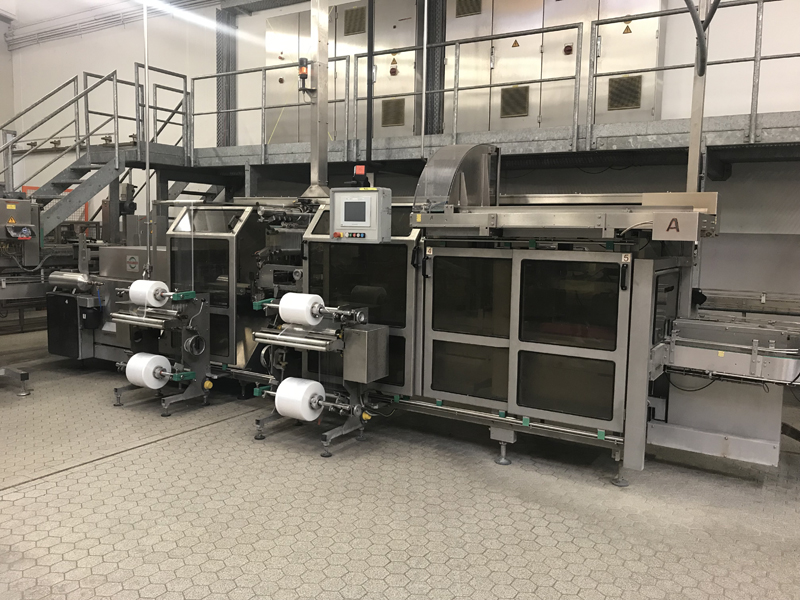

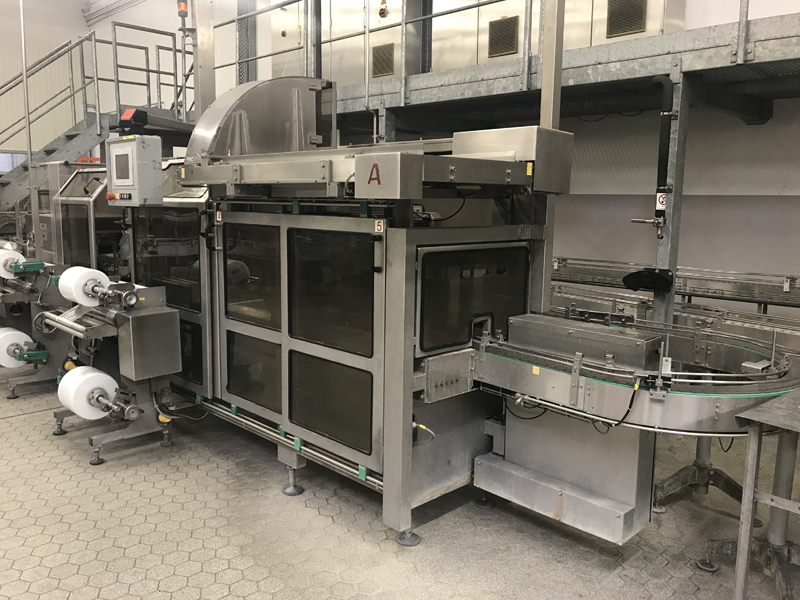

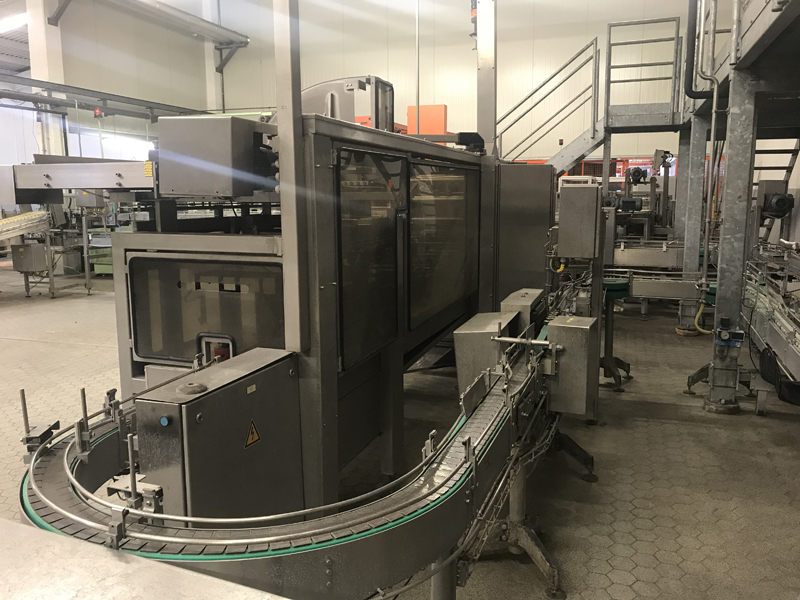

Meurer Film/Foil Wrapping and Packer

Technical Data and Specifications

Foil packaging from Meurer makes individual packaging transportable – safe, economical and absolutely reliable. In the following we provide you with a machine we offer with the following details;

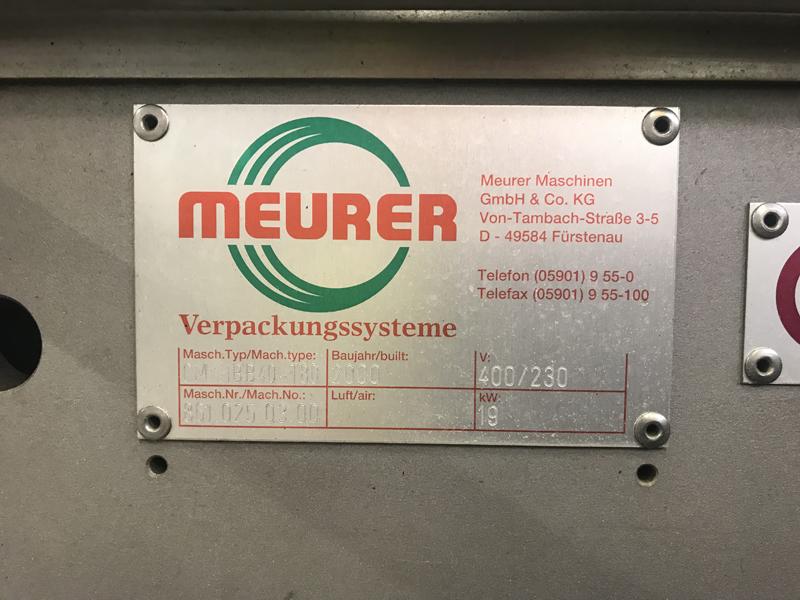

Manufacturer: Meurer

Model: CM/HBB 40-T80

Manufactured in: 2000

V: 400/230

kW: 19

For forming and shrinking of beverage packages in following setups:

Pos. Article Unit dimensions Formation Container dimensions

1. a) 200 mid 53 x 38 x 106 mm 3 x 1 159 x 38 x 106 mm
2. b) 3 x 2 159 x 76 x 106 mm

   Additional formats, which can be packed in a later period

2. a) 4 x 1 212 x 38 x 106 mm
3. b) 4 x 2 212 x 38 x 106 mm

Capacity of 10-12.000 p/h

Foil specifications:

LDPE-Foil

Foil thickness:    approx. 30 – 40 µm

Core type:    carton/paper Ø 76 mm
